Product Description :

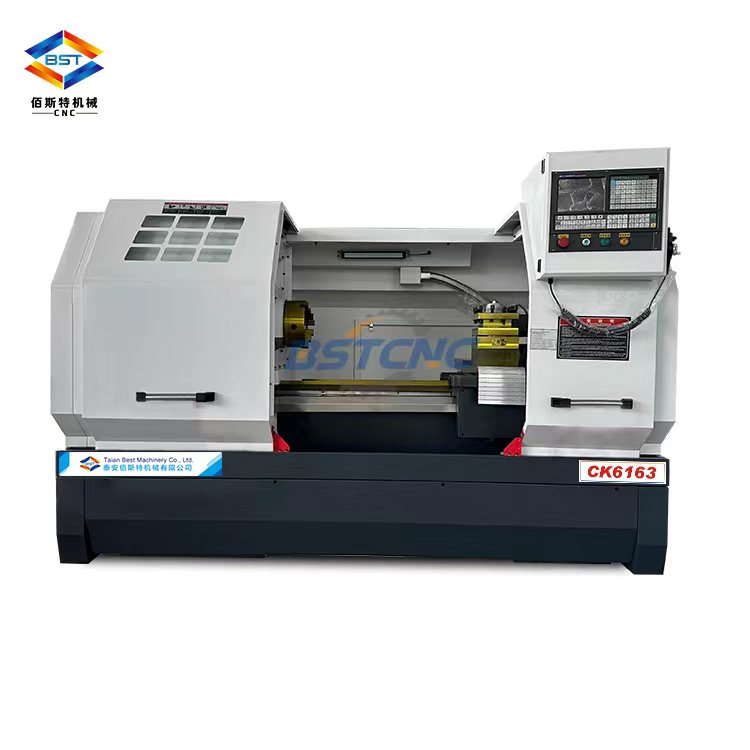

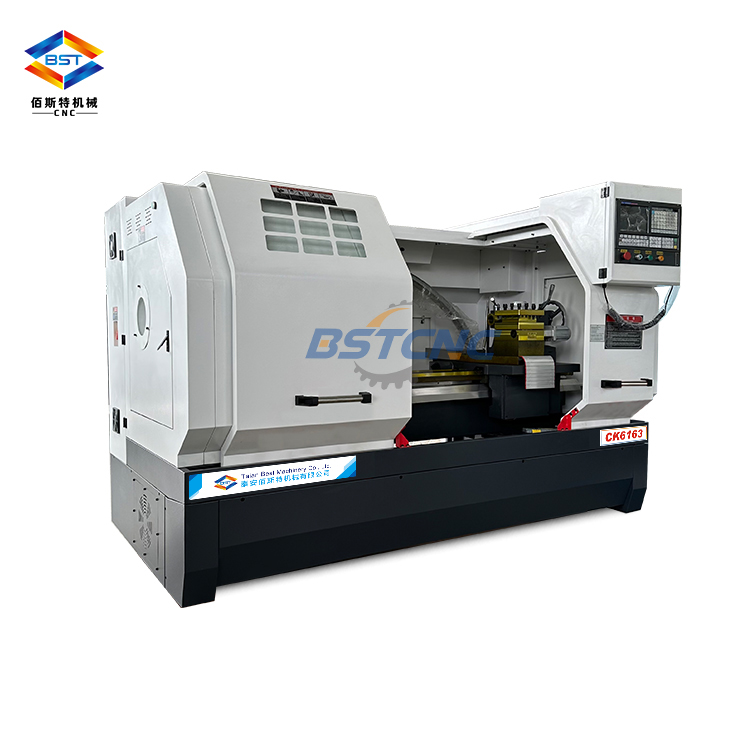

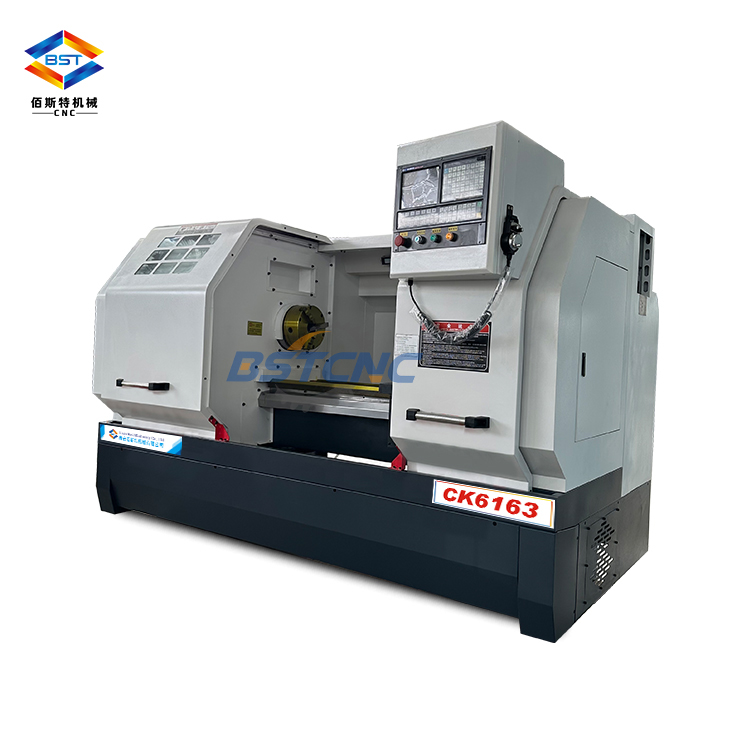

CK6163 series CNC Lathe Machine is an economical,practical type machine tools with good quality .The machine has a very wide use which is suitable for internal and external turning ,tapering,circular arc,thread,boring ,reaming of axle and disk workpiece .It also can achieve non-circular curve machining .You can choose the CNC system and optional accessories according to your requirements.
Standard Configuration :
-GSK980TB3

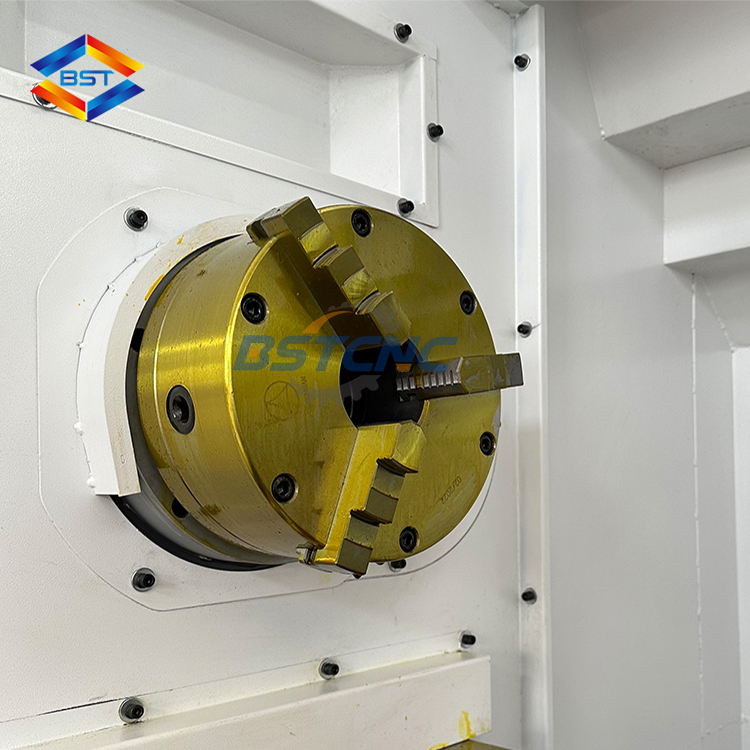

-3 jaws manual chuck

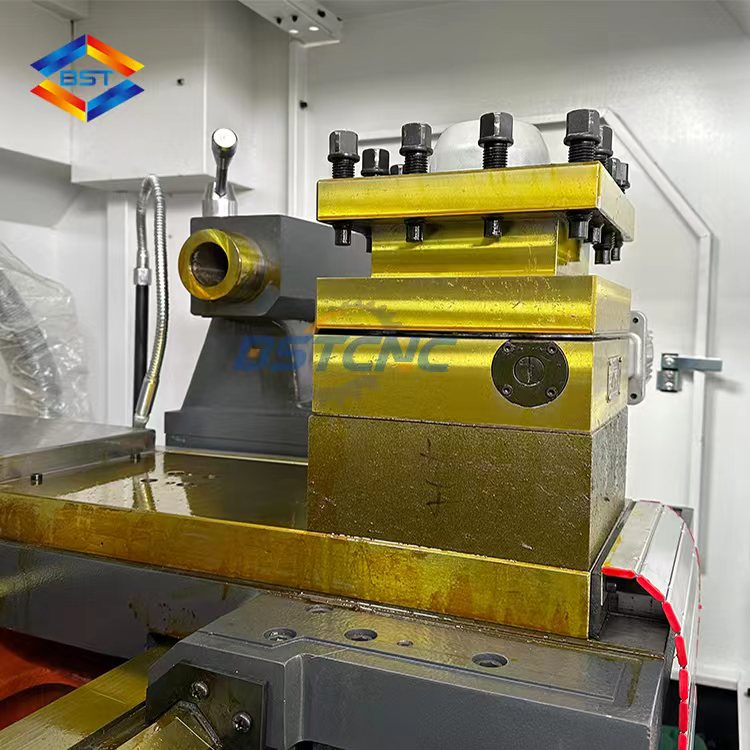

-4 station electric turret
-Manual tailstock
|
Item |
CK6163 |
|
Max. swing dia. over bed |
Φ630mm |
|
Max. swing dia. over cross slide |
Φ320mm |
|
Max.distance between centers |
1000/1500/2000/3000mm |
|
X/Z Max. travel |
315/1000mm/1500........ |
|
X/Z axis Ball screw |
2505/4010 |
|
Width of the bed |
400mm |
|
Range of spindle speed |
Frequency conversion 3 steps 45-180rpm；250-600 rpm；600-1600rpm |
|
Dia. of spindle |
Φ82mm |
|
Spindle speed |
50-1500rpm |
|
Spindle nose |
A2-8 |
|
Tool holder |
4 station |
|
Tool bar section |
25X25 mm |
|
Tail stock center travel |
100mm |
|
Dia. of tailstock sleeve |
75mm |
|
Tail stock sleeve taper |
MT5 |
|
Positioning accuracy |
X: ≤0.035 mm Z: ≤0.040 mm |
|
Repositioning accuracy |
X: ≤0.075 mm Z: ≤0.010 mm |
|
Main motor power |
11KW (frequency conversion) |
|
X/Z axis torque |
5/7.5N.M |
|
X/Z axis fast feeding speed |
6/10M/MIN |
|
Dimension |
3000x1900x2300mm |
|
Net weight(1000mm) |
2800KG |
|
Gross weight(1000mm) |
3200KG |
