Product Description :

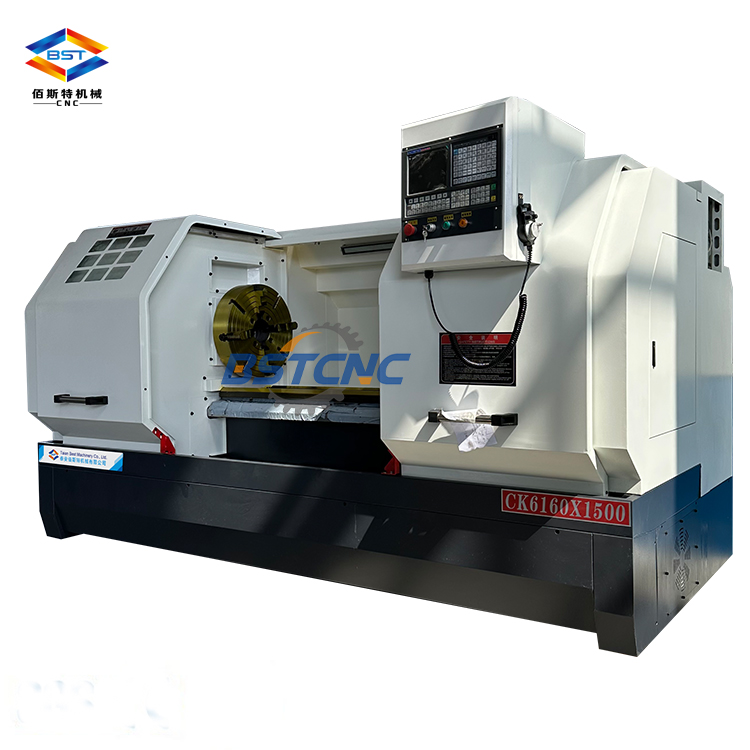

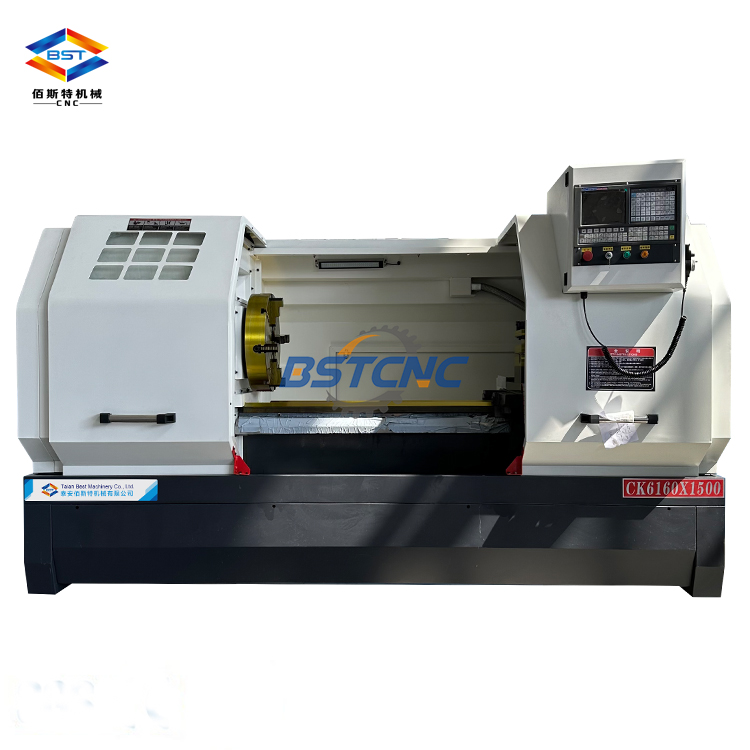

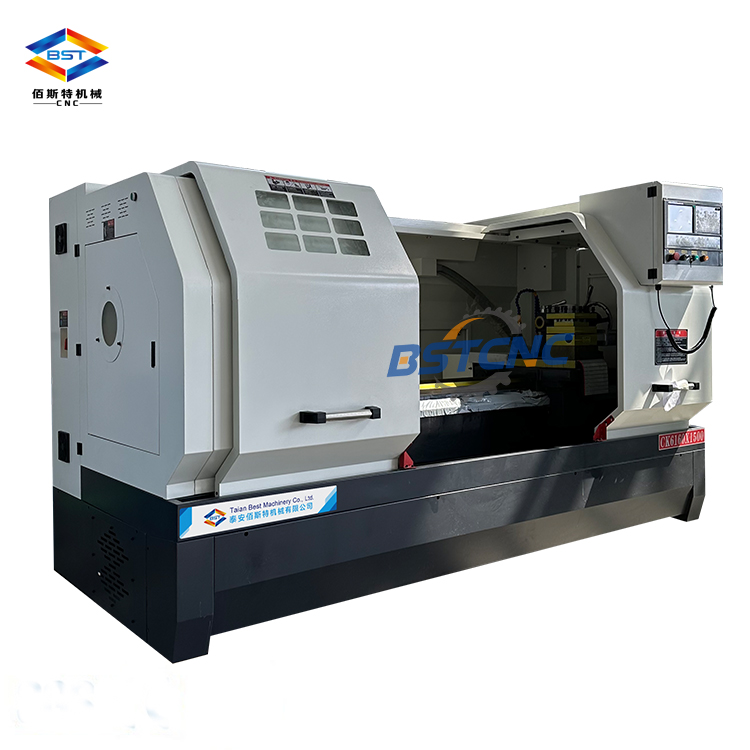

CK6160 series CNC Lathe Machine is an economical,practical type machine tools with good quality .The machine has a very wide use which is suitable for internal and external turning ,tapering,circular arc,thread,boring ,reaming of axle and disk workpiece .It also can achieve non-circular curve machining .You can choose the CNC system and optional accessories according to your requirements.
Standard Configuration :
-GSK980TB3

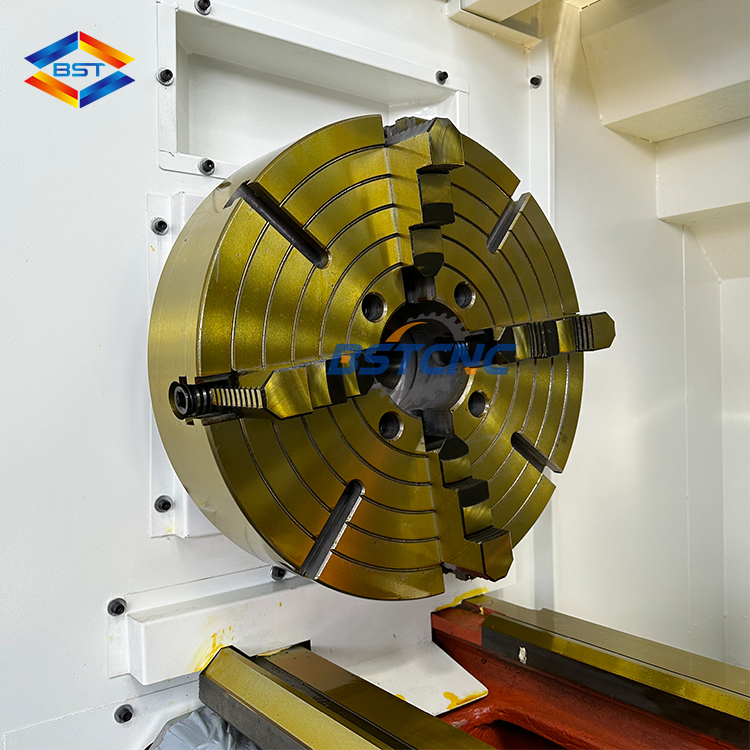

-3 jaws manual chuck

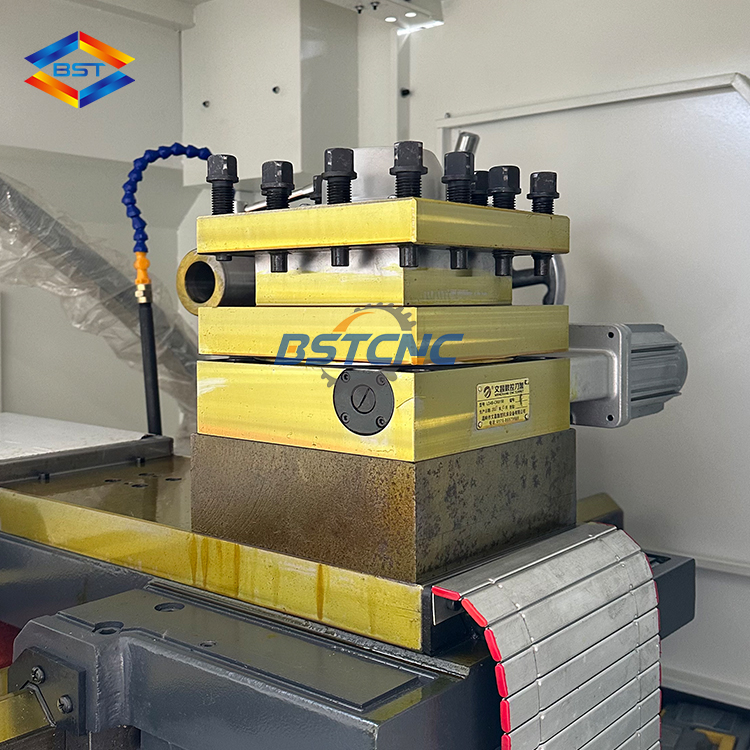

-4 station electric turret
-Manual tailstock
|
Specifications |
CK6160 |
|
Max.Swing over bed |
600mm |
|
Max.swing dia. over cross slide |
310mm |
|
Max.turning diameter |
500mm |
|
Max.workpiece length |
1000/1500/2000mm |
|
Chuck size |
320mm |
|
Spindle bore diameter |
φ80/φ105/130MM |
|
Range of spindle speeds |
150-1600r/min |
|
Tail stock center travel |
200mm |
|
Tail stock sleeve taper |
MT5 |
|
Positioning accuracy |
±0.015mm |
|
Repositioning accuracy |
±0.006mm |
|
X/Z rapid traverse |
6/8m/min |
|
Spindle Motor |
11KW |
|
Machine dimensions(LXWXH) |
2940x1500x1800mm |
|
Net weight |
3000KG |
|
Gross weight |
3400KG |
